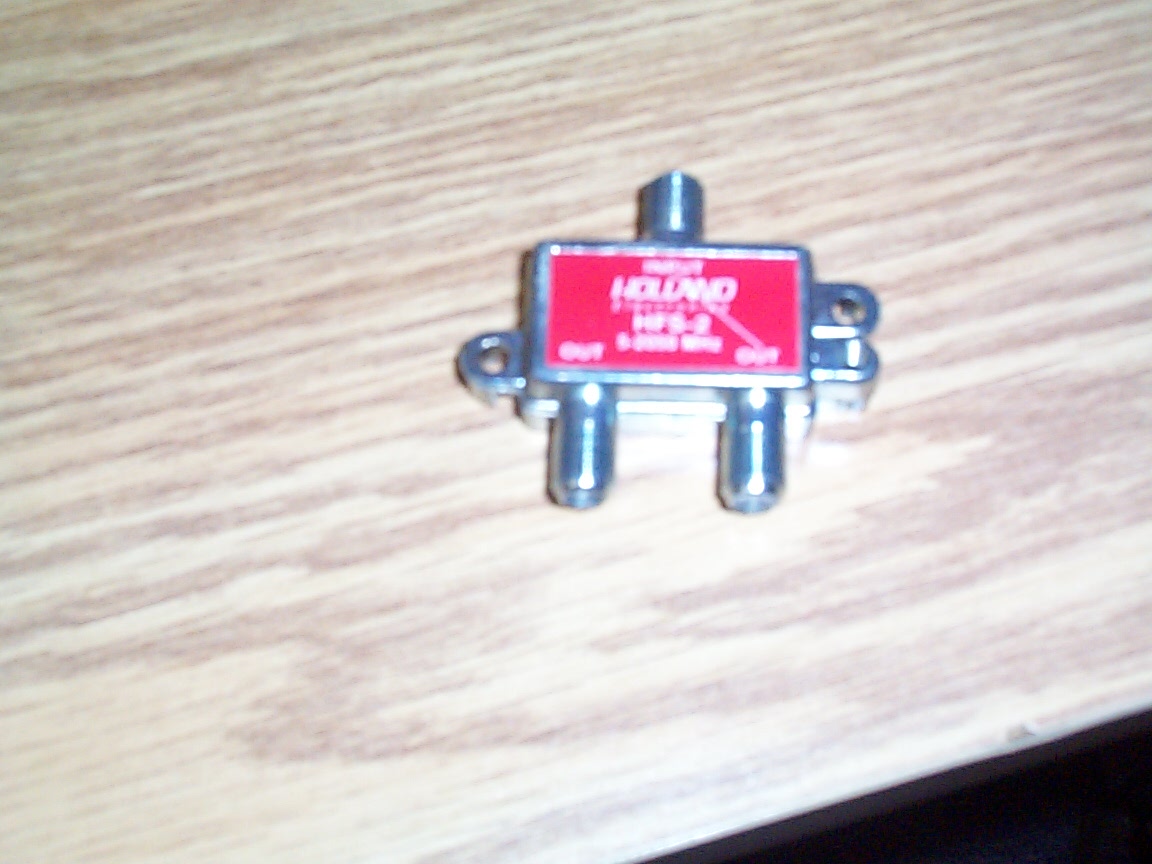

The 2-way splitter.
[list]
[*]The coaxial cable coming from the LNB at the dish connects to the single port on the top.
[*]The coaxial cable to the Linkway 2100 connects to the bottom right.
[*]The coaxial cable to the IDC SRA2100 DVB IRD connects to the bottom left.
[/list]
Where the connectors are connected to is important! The diagonal solid line on the splitter indicates a path that has DC continuity. This path is required for the Linkway 2100 to supply power to the LNB.
